J11W
RST

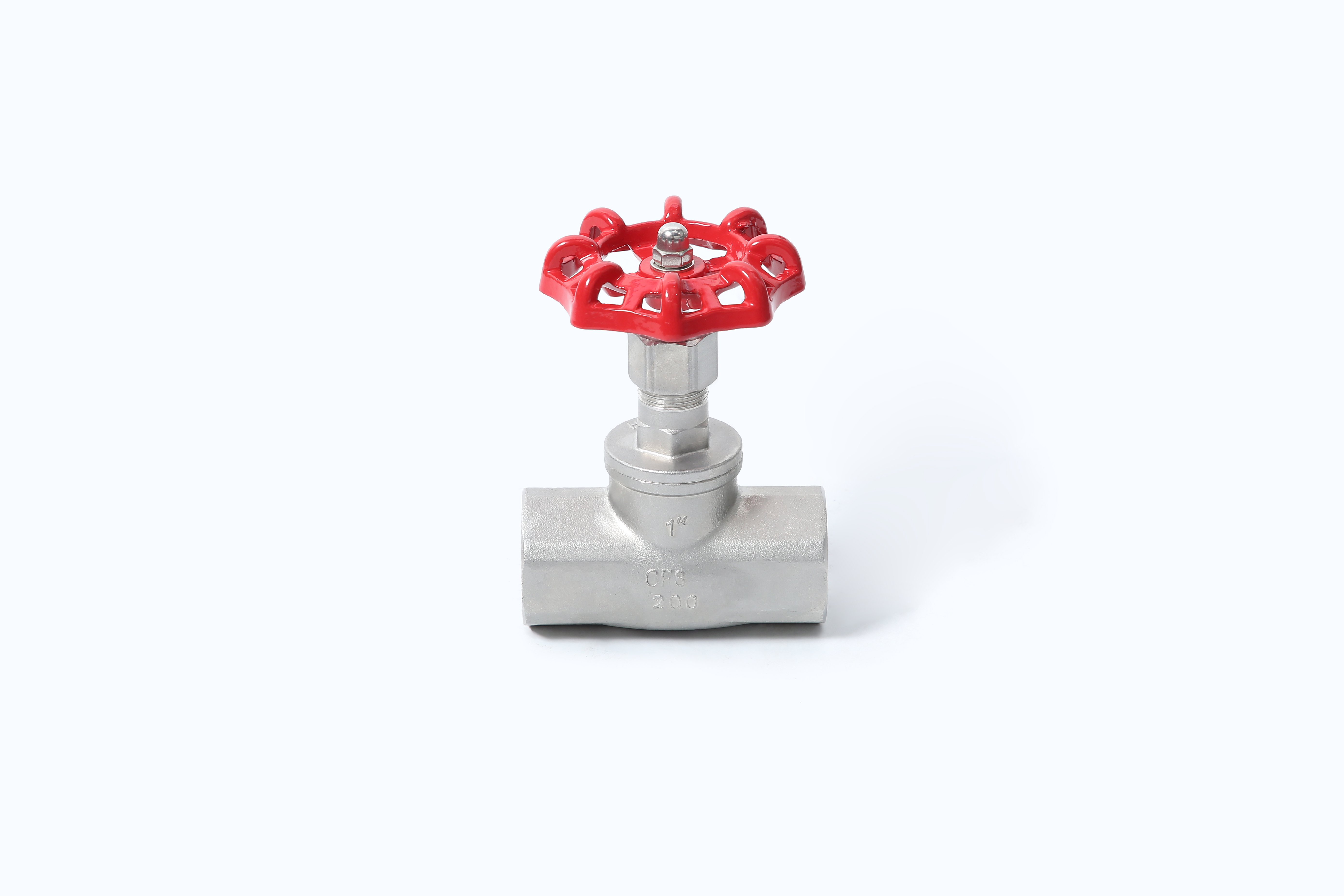

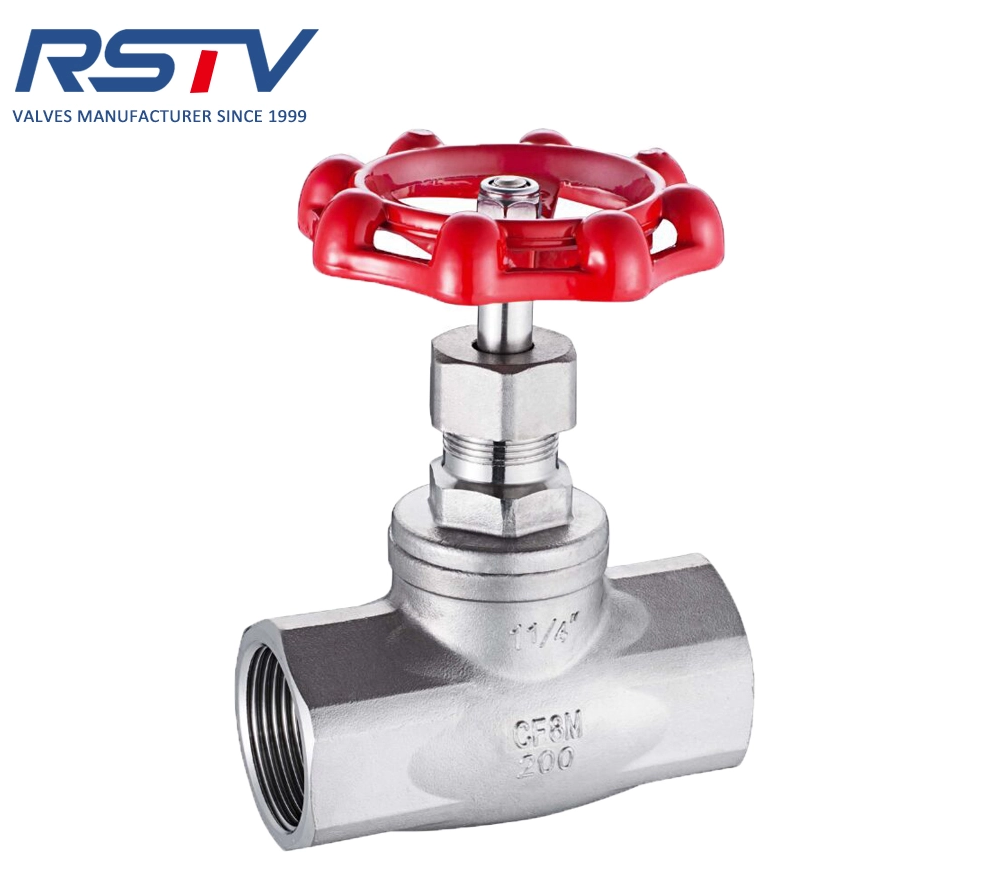

A threaded globe valve is a type of industrial valve designed for regulating the flow of fluids, such as liquids or gases, within a pipeline. Threaded globe valves typically have a globular-shaped body, which houses the internal components. The globe-shaped structure is essential for effective throttling or regulating flow.Threaded Ends: The valve is equipped with threaded ends, allowing it to be directly screwed onto corresponding threaded pipes or fittings. This threaded connection simplifies installation and maintenance processes.
Features
--Construction – Non-Rising Type
--Material – A351 CF8M/CF8/CF3, A216 WCB,etc
--Size Range –1/2"-4" ( DN15-DN100)
--End Connection – Threaded ANSI B 1.20.1 (NPT) DIN 259/DIN 2999, ISO 228, BSP, PT
Socket Welding ASME B16.11
--Pressure Rating – 200WOG
--Temperature Rage – -20°C – 180°C
Material
| PART NO. | MATERIAL | |
| BODY | CF8M | CF8 |
| BONNET | CF8M | CF8 |
| DISC | CF8M | CF8 |
| STEM | 316 | 304 |
| GASKET | PTFE | PTFE |
Regulation Capability
Globe valves are known for their excellent throttling capabilities. The valve design includes a movable disc (or plug) that can be positioned within the flow path to control the rate of fluid flow. This makes threaded globe valves suitable for applications where precise flow control is required.
Package &Delivery
Every item gets a standard packing quantity in a neutral packing. Customized personal specific printing packing is available.
Stainless Steel Threaded Globe Valves are widely recognized for their exceptional throttling capabilities, making them ideal for applications that demand precise flow control. These valves are designed with a movable disc or plug that can be strategically positioned within the flow path to regulate the rate of fluid flow. Threaded globe valves, like the one mentioned in the text, are just one variation available in the market. Other configurations, such as flanged or welded ends, exist to cater to the specific requirements of different applications.
A threaded globe valve is a type of industrial valve designed for regulating the flow of fluids, such as liquids or gases, within a pipeline. Threaded globe valves typically have a globular-shaped body, which houses the internal components. The globe-shaped structure is essential for effective throttling or regulating flow.Threaded Ends: The valve is equipped with threaded ends, allowing it to be directly screwed onto corresponding threaded pipes or fittings. This threaded connection simplifies installation and maintenance processes.
Features
--Construction – Non-Rising Type
--Material – A351 CF8M/CF8/CF3, A216 WCB,etc
--Size Range –1/2"-4" ( DN15-DN100)
--End Connection – Threaded ANSI B 1.20.1 (NPT) DIN 259/DIN 2999, ISO 228, BSP, PT
Socket Welding ASME B16.11
--Pressure Rating – 200WOG
--Temperature Rage – -20°C – 180°C
Material
| PART NO. | MATERIAL | |
| BODY | CF8M | CF8 |
| BONNET | CF8M | CF8 |
| DISC | CF8M | CF8 |
| STEM | 316 | 304 |
| GASKET | PTFE | PTFE |
Regulation Capability
Globe valves are known for their excellent throttling capabilities. The valve design includes a movable disc (or plug) that can be positioned within the flow path to control the rate of fluid flow. This makes threaded globe valves suitable for applications where precise flow control is required.
Package &Delivery
Every item gets a standard packing quantity in a neutral packing. Customized personal specific printing packing is available.
Stainless Steel Threaded Globe Valves are widely recognized for their exceptional throttling capabilities, making them ideal for applications that demand precise flow control. These valves are designed with a movable disc or plug that can be strategically positioned within the flow path to regulate the rate of fluid flow. Threaded globe valves, like the one mentioned in the text, are just one variation available in the market. Other configurations, such as flanged or welded ends, exist to cater to the specific requirements of different applications.
